Turn out that a lot of people make the same mistake. Basically if the door don't work after new battery install, flip the battery and try again. Dealer said that's like 98% of key fob issues. Locksmith says he does the start program not door program. I can't believe they are different but I'll post an update. VOLVO There is no onboard programming procedure for Kia Sorento 2007-2011. This vehicle requires special equipment be connected to the vehicle to program the keyless remote. Please contact your dealer or local automotive locksmith.

The SMARTRA stands for SMARt TRansponder Antenna. The SMARTRA unit contains an integrated inductive antenna and electronics around the ignition lock assembly.

The SMARTRA does not carry out the check of validity of transponder or the calculation of encryption algorithm. This device is only an advanced interface, which converts the RF data flow (radio frequency of 125 kHz) of transponder into serial communication to ECM and vice versa. The SMARTRA communicates to a engine control module via a dedicated communications line (called W-Line, or Immo-Line). During communication of ECM and SMARTRA the K line of ECM cannot be used for communication. The ECM controls the communication either to SMARTRA or diagnostic equipment on K line by switching of a multiplexer and specific communication procedures. The multiplexer is a part of ECM hardware.
The immobilizer system consists of the ECM, the SMARTRA, the lamp and ignition keys with built-in transponder. The ECM carries out the check of ignition key by special encryption algorithm, which runs in the transponder and in the ECM in parallel. Only if the results are equal the engine can be started. The data of all transponder, which are valid for the vehicle, are stored in the ECM.
During the key teaching procedure the transponder will be programmed with vehicle specific data. The vehicle specific data are written into the transponder memory.

PIN codes

1. Jul 25, 2012 HI, Ok, the key fob for the 2011 Sedone cannot be -programmed at home. It absolutely requires the use of a factory level scan tool and proprietary Kia software, which means at trip to the dealer.
2. The Kia Carnival is a minivan manufactured by Kia Motors and marketed globally under various nameplates — prominently as the Kia Sedona.Some model years of the Kia Sedona have keyless entry remote fob smart keys that are onboard programmable, which means a person can program the keyless entry remote fob smart key with no special equipment other than the keyless entry remote fob smart key.

PIN code stands for of Product Identification Number code. The PIN code is a unique code for each vehicle and it is programmed into ECM at production line.

PIN code is needed when the teaching new ECM and new keys, e.g.

1. When a new key is added
2. When replacing with new ECM or used ECM (neutralized ECM)
3. When a key is lost and needs to be deleted

If you enter incorrect pin 3 times the immobilizer (SMARTRA or Smart key) will lock In order to unlock:

• For mechanical keys leave key on for 1 hour.
• For smart key (proximity) leave car alone with good battery charge for 1 hour.

Vehicle PIN code can be obtained through www.PATSCode.com service or through Hyundai dealer.

Following list shows all vehicles for which is key teaching supported:

Key coding procedure is available in control unit IMMO – Immobilizer from “ECU Programming/Coding” menu.

Teaching

Engine must be turned off. Key is turned to ON position.

You will be prompted to enter a 6-digit PIN code. (eg 123456, see page 2 - PIN codes)

Now you have the key in ignition in the ON position. This key is coded after clicking on 'Yes' button.

You will be prompted whether you want to code another key. If you click 'yes', HiCOM will ask you to insert the next key. Up to 4 keys can be coded.(some control units allow units up to 8 keys). If you click on 'No', the coding process is terminated and no more keys are added.

After successful completion of the operation, switch off the ignition for 10 seconds.

Some vehicles have contact-less (RFID) smart-key instead of mechanical key. On these vehicles coding via SMARTRA operation will fail, it is necessary to use special dedicated smart-key control unit for this purpose. The feature can be found in Smart Key Code Saving control unit (PIC, SMKCODE).

Used smart keys cannot be programmed to another car. Please make sure you are purchasing smart keys from a trusted source.

When no valid smart key is present it is not possible to start engine and also it might be not possible to diagnose other ECUs than PIC/SMK.

Teaching

Engine must be turned off, start/stop pushbutton in OFF state.

Select 'Key Teaching' feature in 'ECU Programming/Coding' menu.

You will be prompted to enter a 6-digit PIN code. (eg 123456, see page 2 - PIN codes)

If you enter incorrect pin code, the ECU will lock after 2 or 3 attempts.

After this step MSL teaching starts automatically on some ECUs.

Key fob must be inserted into the Smart key holder (if there is no smart key holder, use tip of the remote to push start/stop button)

Hold Stop Start Button for 5 seconds with key in smart key holder. If your car does not have smart key holder, please use tip of the remote to push start/stop button.

The same operation will be performed for other of smart key fobs. Maximum of 2 Smart keys can be recoded.

After coding operation is complete, HiCOM displays information about successful coding.

Shows basic info about keys. Possible values: Not checked, Learnt, Virgin, Neutral, Locked

This feature is used to test of PIN correctness.

The password is used to switch the car into Limp mode.

You will be prompted to enter password, if the control unit is not a 'Virgin'. The password is numeric, consisting of 4 decimal digits (eg 1234). Regarding the Virgin control unit, you are directly prompted to set a password.

Now enter a new password. The password must consist of four-digit decimal number (eg 1234). After pressing the 'Continue' button the password is set in the control unit.

This function serves to use already used ECU in another vehicle.
Engine must be turned off. Key is turned to ON position.

This function switches the car into emergency mode that is used to drive the car to workshop in case of all keys are lost or SMARTRA module is not working properly.

How To Program A 2011 Kia Sorento Key Fob Problems

The ECM informs the driver about the limp home condition by 5 times blinking for 5 second. Then the user password can be sent to the ECM by HiCOM. The limp home can be activated also by the ignition key. The ECM informs the driver by blinking immobilizer lamp about the limp home condition. Then the input of user password to ECM can be done by special sequence of ignition on/off.

• Password must be set up first (using 'Teaching Password/Changing' feature)
• Engine must be turned off. Key is turned to ON position.
• Type four-digit decimal number (password), eg 1234.

The SMARTRA stands for SMARt TRansponder Antenna. The SMARTRA unit contains an integrated inductive antenna and electronics around the ignition lock assembly.

The SMARTRA does not carry out the check of validity of transponder or the calculation of encryption algorithm. This device is only an advanced interface, which converts the RF data flow (radio frequency of 125 kHz) of transponder into serial communication to ECM and vice versa. The SMARTRA communicates to a engine control module via a dedicated communications line (called W-Line, or Immo-Line). During communication of ECM and SMARTRA the K line of ECM cannot be used for communication. The ECM controls the communication either to SMARTRA or diagnostic equipment on K line by switching of a multiplexer and specific communication procedures. The multiplexer is a part of ECM hardware.
The immobilizer system consists of the ECM, the SMARTRA, the lamp and ignition keys with built-in transponder. The ECM carries out the check of ignition key by special encryption algorithm, which runs in the transponder and in the ECM in parallel. Only if the results are equal the engine can be started. Torrent propellerhead recycle mac download. The data of all transponder, which are valid for the vehicle, are stored in the ECM.
During the key teaching procedure the transponder will be programmed with vehicle specific data. The vehicle specific data are written into the transponder memory.

PIN codes

PIN code stands for of Product Identification Number code. The PIN code is a unique code for each vehicle and it is programmed into ECM at production line.

PIN code is needed when the teaching new ECM and new keys, e.g.

1. When a new key is added
2. When replacing with new ECM or used ECM (neutralized ECM)
3. When a key is lost and needs to be deleted

If you enter incorrect pin 3 times the immobilizer (SMARTRA or Smart key) will lock In order to unlock:

• For mechanical keys leave key on for 1 hour.
• For smart key (proximity) leave car alone with good battery charge for 1 hour.

Vehicle PIN code can be obtained through www.PATSCode.com service or through Hyundai dealer.

Following list shows all vehicles for which is key teaching supported:

Key coding procedure is available in control unit IMMO – Immobilizer from “ECU Programming/Coding” menu.

Teaching

Engine must be turned off. Key is turned to ON position.

You will be prompted to enter a 6-digit PIN code. (eg 123456, see page 2 - PIN codes)

Now you have the key in ignition in the ON position. This key is coded after clicking on 'Yes' button.

You will be prompted whether you want to code another key. If you click 'yes', HiCOM will ask you to insert the next key. Up to 4 keys can be coded.(some control units allow units up to 8 keys). If you click on 'No', the coding process is terminated and no more keys are added.

After successful completion of the operation, switch off the ignition for 10 seconds.

Some vehicles have contact-less (RFID) smart-key instead of mechanical key. On these vehicles coding via SMARTRA operation will fail, it is necessary to use special dedicated smart-key control unit for this purpose. The feature can be found in Smart Key Code Saving control unit (PIC, SMKCODE).

Used smart keys cannot be programmed to another car. Please make sure you are purchasing smart keys from a trusted source.

When no valid smart key is present it is not possible to start engine and also it might be not possible to diagnose other ECUs than PIC/SMK.

Teaching

Engine must be turned off, start/stop pushbutton in OFF state.

Select 'Key Teaching' feature in 'ECU Programming/Coding' menu.

You will be prompted to enter a 6-digit PIN code. (eg 123456, see page 2 - PIN codes)

2013 Kia Sportage Key Fob

If you enter incorrect pin code, the ECU will lock after 2 or 3 attempts.

After this step MSL teaching starts automatically on some ECUs.

Kia Replacement Key Fob

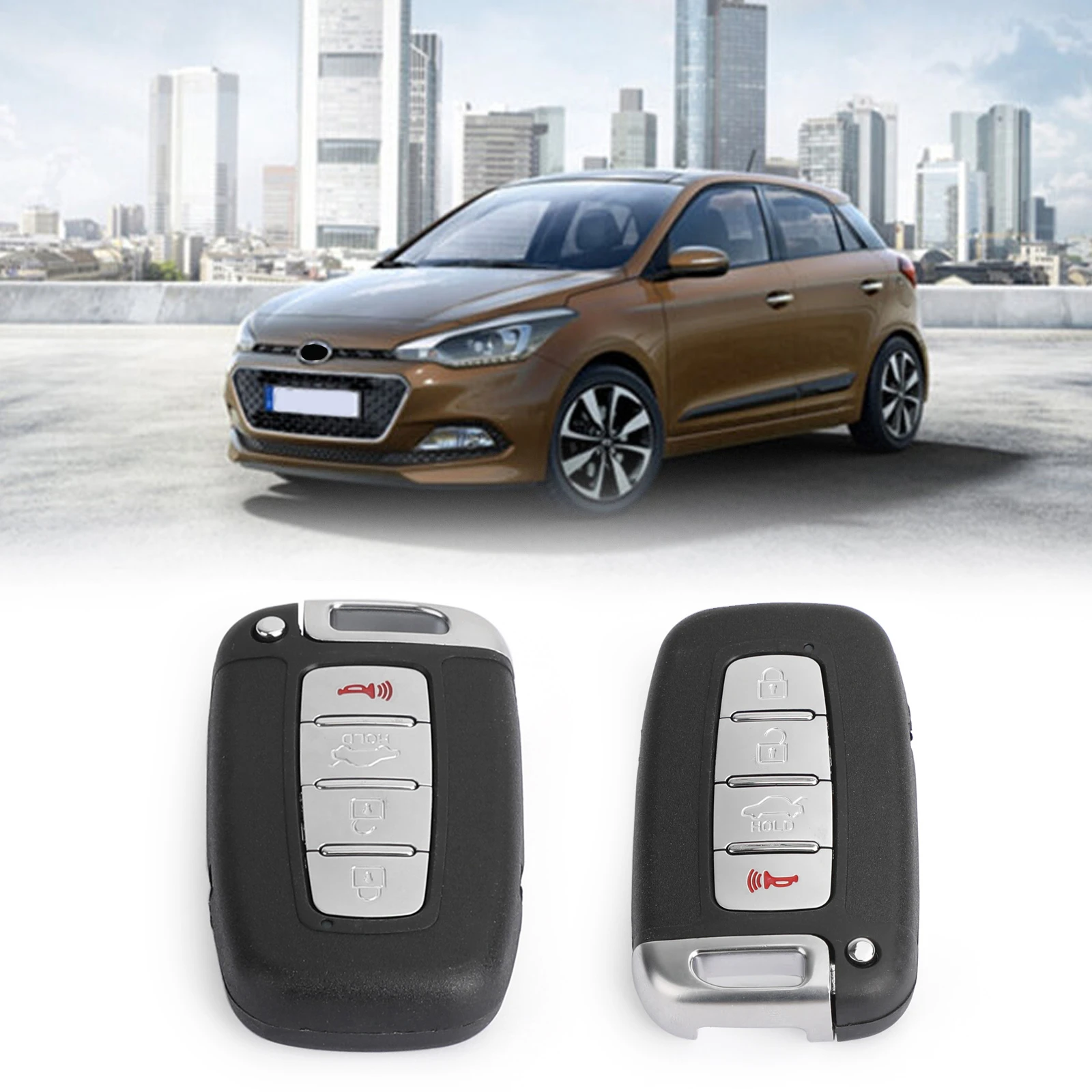

Key fob must be inserted into the Smart key holder (if there is no smart key holder, use tip of the remote to push start/stop button)

Hold Stop Start Button for 5 seconds with key in smart key holder. If your car does not have smart key holder, please use tip of the remote to push start/stop button.

The same operation will be performed for other of smart key fobs. Maximum of 2 Smart keys can be recoded.

After coding operation is complete, HiCOM displays information about successful coding.

Shows basic info about keys. Possible values: Not checked, Learnt, Virgin, Neutral, Locked

Naza Kia Sorento Malaysia

This feature is used to test of PIN correctness.

The password is used to switch the car into Limp mode.

You will be prompted to enter password, if the control unit is not a 'Virgin'. The password is numeric, consisting of 4 decimal digits (eg 1234). Regarding the Virgin control unit, you are directly prompted to set a password.

Now enter a new password. The password must consist of four-digit decimal number (eg 1234). After pressing the 'Continue' button the password is set in the control unit.

This function serves to use already used ECU in another vehicle.
Engine must be turned off. Key is turned to ON position.

Build Your Own Kia Sorento

This function switches the car into emergency mode that is used to drive the car to workshop in case of all keys are lost or SMARTRA module is not working properly.

How To Program A 2011 Kia Sorento Key Fob Lock

The ECM informs the driver about the limp home condition by 5 times blinking for 5 second. Then the user password can be sent to the ECM by HiCOM. The limp home can be activated also by the ignition key. The ECM informs the driver by blinking immobilizer lamp about the limp home condition. Then the input of user password to ECM can be done by special sequence of ignition on/off.

How To Program A 2011 Kia Sorento Key Fob Cover

• Password must be set up first (using 'Teaching Password/Changing' feature)
• Engine must be turned off. Key is turned to ON position.
• Type four-digit decimal number (password), eg 1234.
